There are so many type food paper bags in market . Such as V bottom paper bag with/without plastic window , square bottom paper bag with/without plastic window , etc. The food paper bag making machine can be selected according to the type of food you want to pack.Every different food type has its own food paper bag making machine. For helping customers more clear how to choose the type of paper bag making machine , here we share some solutions for your reference .
I . PAPER BAG MAKING MACHINE FOR BREAD PACKING
Bag type : V bottom paper bag with/without plastic window
Paper thickness : 35gsm-85gsm (white or brown food grade kraft paper or recycle kraft paper ). Plastic thickness: 0.02-0.04mm
Recommend KETE MACHINE :

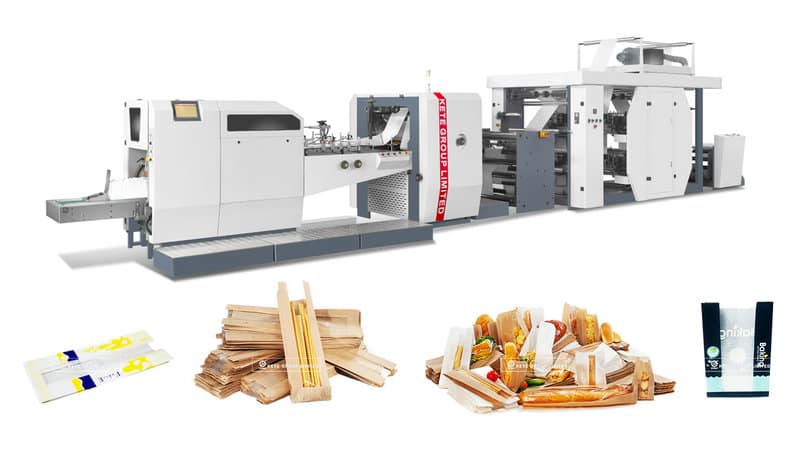

1. KTPM-AW 250 V bottom paper bag making machine
This machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper, medico paper and so on, bag making process consist of puncture, side gluing, side folding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in one time. It is an ideal machine for make different kind of paper bag, snack food paper bag, bread paper bag, dry fruit paper bag and environment-friendly paper bag.
Performance and Characteristics:
- PLC Touch Screen use SCHNEIDER Brand (French)
- PC Motion controller use TRIO Brand (UK)
- Servo Motor use YASKAWA Brand (Japan)
- Inverter use DETLA Brand (Taiwan)
- Photo Senor use SICK Brand (Germany)
- Unwind EPC use PASOURCE Brand (Taiwan)
- Unwind with Pneumatic Auto Loading
- Electrical Controller Box with Air Condition
- Machine with CE Certification
- Machine with ROHS Certification
- Optional Film Window OpenDevice
- Optional Film Perforation Function
- Optional Inline FlexoPrinting Machine (2 colors/4 colors)
Main Technical Specifications:
Model | KTPM-A250 | KTPM-AW250 |
Paper Jumbo Roll Width | 160-780mm | 160-780mm |
Paper Tube Cutting Length | 110-460mm | 110-460mm |
Bag Making Height | 105-455mm | 105-455mm |
Bag Making Width | 70-250mm 40-60mm (Customized) | 70-250mm 40-60mm (Customized) |
Mechanical Speed | 50-350pcs/min | |
Bag Making Speed | 50-260pcs/min | |
Paper Feeding Speed | ≤70m/min | |
Bag Side Gusset | 20-120mm | 20-120mm |
Bag Mouth Height | 15/20mm 10-20 (Customized) | 15/20mm 10-20 (Customized) |
Paper Thickness | 35-80gsm | 35-80gsm |
Jumbo Roll Diameter | 200-1200mm | 200-1200mm |
Plastic Window | ||
Plastic Film Thickness | / | 0.015-0.05mm |
Plastic Film Width | / | 50-200mm |
Inline Flexo Printing | ||
Color | 2 colors /4 colors | 2 colors /4 colors |
Printing Machine Model | 1000 | 1000 |
Printing Width | ≤960mm | ≤960mm |
Printing Length | 160-460mm | 160-460mm |
Printing Speed | 10-100m/min | 10-100m/min |
Machine Power | 17kw 33kw(P2) 36KW(P4) | 22kw 38kw(P2) 41KW(P4) |
Machine Weight | 4000kg 7300kg(P2) 7800kg(P4) | 4500kg 7800kg(P2) 8300kg(P4) |
Machine Size (LWH) | 7100 x 3000 x 2200mm 12000 x3000 x2400mm(P2) 12700 x3000 x2400mm(P4) | 7100 x 3100 x 2200mm 12000 x3100 x2400mm(P2) 12700 x3100 x2400mm(P4) |
Power Support | 3 Phase 220/380/440V 50/60HZ | |
Recommend KETE Machine :
If you need make bigger size bag and with higher output speed , you can consider to choose our this machines

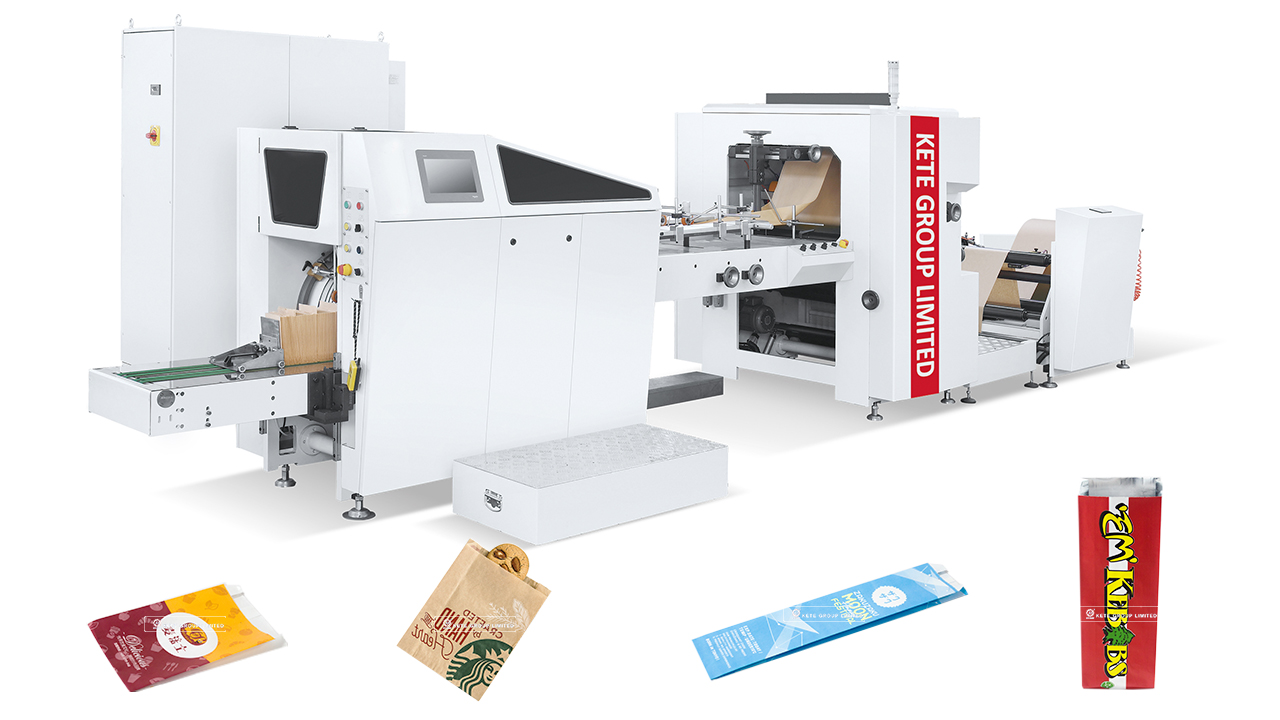

2. KTPM-AW 350P High Speed V bottom paper bag making machine
Performance and Characteristics:
- PLC Touch Screen use LENZEBrand (Germany)
- PC Motion controller use LENZEBrand (Germany)
- Servo Motor use LENZEBrand(Germany)
- Inverter use DETLA Brand (Taiwan)
- Photo Senor use SICK Brand (Germany)
- Unwind EPC use PASOURCE Brand (Taiwan)
- Unwind with Pneumatic Auto Loading
- Electrical Controller Box with Air Condition
- Machine with CE Certification
- Machine with ROHS Certification
- Optional Film Perforation Function
- OptionalInline FlexoPrinting Machine (2 colors/4 colors)
Main Technical Specifications:
Model | KTPM-A350 | KTPM-AW350 |
Paper Jumbo Roll Width | 160-960mm | 160-960mm |
Paper Tube Cutting Length | 165-715mm | 165-720mm |
Bag Making Height | 160-710mm | 160-710mm |
Bag Making Width | 70-350mm | 70-350mm |
Mechanical Speed | 50-600pcs/min | |
Bag Making Speed | 50-400pcs/min | |
Paper Feeding Speed | ≤120m/min | |
Bag Side Gusset | 20-120mm | 20-120mm |
Bag Mouth Height | 15/20mm 10-20 (Customized) | 15/20mm 10-20 (Customized) |
Paper Thickness | 35-80gsm | 35-80gsm |
Jumbo Roll Diameter | 200-1200mm | 200-1200mm |
Plastic Window | ||
Plastic Film Thickness | / | 0.020-0.037mm |
Plastic Film Width | / | 80-280mm |
Inline FlexoPrinting | ||
Color | 2 colors /4 colors | 2 colors /4 colors |
Printing Machine Model | 1000 | 1000 |
Printing Width | ≤960mm | ≤960mm |
Printing Length | 165-715mm | 165-715mm |
Printing Speed | 10-100m/min | 10-100m/min |
Machine Power | 42kw 47kw(P2) 48KW(P4) | 47kw 52kw(P2) 53KW(P4) |
Machine Weight | 9000kg 12300kg(P2) 12800kg(P4) | 9500kg 12800kg(P2) 13300kg(P4) |
Machine Size (LWH) | 10500 x 3000 x 2200mm 12000 x3000 x2200mm(2P) 13300 x3000 x2200mm(4P) | 10500 x 3100 x 2200mm 12000 x3100 x2200mm(2P) 13300 x3200 x2200mm(4P) |
Power Support | 3 Phase 220/380/440V 50/60HZ | |
II . PAPER BAG MAKING MACHINE FOR FAST FOOD ,FLOUR, SUGAR PACKING ,AND SO ON.
- Paper weight : 50gsm-130gsm (white or brown food grade kraft paper or recycle kraft paper ).
- All machine is Roll Feeding
- Extend products: SOS paper bag with transparent film window , SOS paper bag with film laminating ,two layers paper bag ,patch bags(D-cut handle bag)
Square Bottom paper bag with plasic window
D-cut handle bag (Patch Bag )
Double layer square bottom paper bag
Recommend KETE Machine :

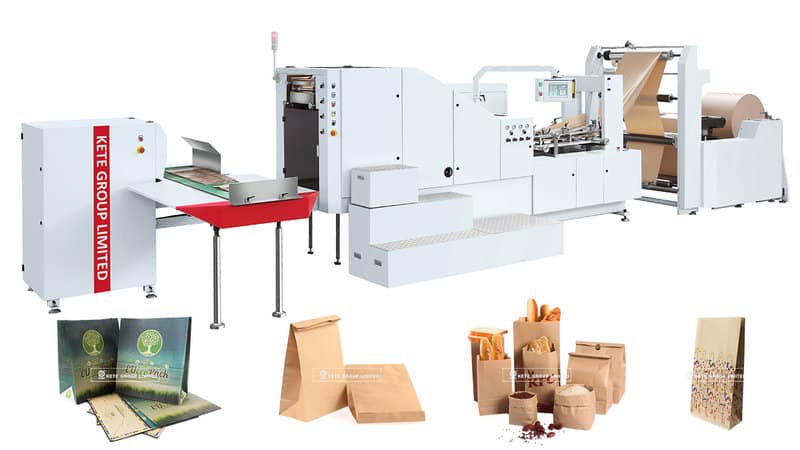

KTPM-B330Series Roll Feeding Fully Automatic Paper Bag Making Machine
This Roll Feeding Fully Automatic Paper Bag Making Machine Use Roll Type Paper to Make Various Sized Square Bottom Paper Bags Without Handles.
Performance and Characteristics:
- PLC Touch Screen Use SCHEIDER Brand (France)
- PC Motion Controller Use REXROTH Brand (Germany)
- Servo Motor Use REXROTH Brand (Germany)
- Inverter Use DELTA Brand (Taiwan)
- Photo Sensor Use SICK Brand (Germany)
- EPC Use SELECTRA Brand (Italy)
- Electrical Box with AC Condition
- Optional Inline Flexo Printing Machine (2 colors/4 colors)
- Optional Double Unwind System
- Optional D-cut handle making function
- Optional plastic window adding function
- Machine with CE Certification
- Machine with ROHS Certification

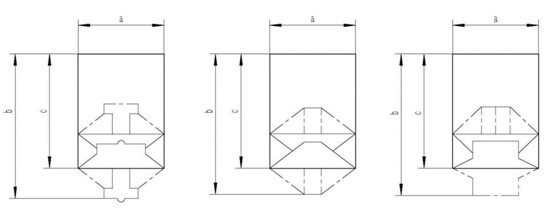

This machine can make various kinds of paper bags having different bag bottom styles
Main Technical Specification
Model | KTPM-B330 | KTPM-B330P |
Tube Length | 270-530mm | 270-530mm |
Bag Width | 120-330mm | 120-330mm |
Bottom Width | 60-180mm | 60-180mm |
Paper Thickness | 50-150gsm | 50-150gsm |
Paper Feeding Speed | ≤110m/min | ≤110m/min |
Mechanical Speed | 30-220pcs/min | 30-220pcs/min |
Paper Bag Making Speed | 30-180 pcs/min | 30-180 pcs/min |
Paper Jumbo Roll Width | 380-1050mm | 380-1050mm |
Paper Jumbo Roll Diameter | Φ1300mm | Φ1300mm |
Paper Core Diameter | Φ76mm | Φ76mm |
Inline Printing Function (Optional) | ||
Printing Color |
| 2Colors / 4Colors |
Printing Length | / | 270-530mm |
Printing Width | / | 100-1160mm |
Printing Speed | / | 10-100m/min |
Color Register Precision | / | ≤±0.20mm |
Rubber Plate Thickness | / | 2.28mm+0.38mm 1.7mm + 0.38mm |
Working Air Current | / | 0.36m³/ min (0.5-0.8 MPa) |
Machine Power | 15kw | 23.2kw (inline 2 colors) 26.7kw (inline 4 colors) |
Machine Weight | 8500kg | 9900kg (inline 2 colors) 10400kg (inline 4 colors) |
Machine Size (LWH) | 10000x3700x2200mm | 16400mmx5000x2500mm(inline 2 colors) 17700mmx5000x2500mm(inline 4 colors) |
Power Support | 3Phase 220/380/440V 50/60HZ | |
If you want get a quotation of any machines or want to know more details to get a start about paper bag production , please feel free to contact us .
